Medical Oxygen Generator Plant

Medical Oxygen Generator Plant in Nigeria

We also manufacture and supply medical oxygen generator plant in Nigeria. Fabrication of the generator plant is done with the high quality materials. Definite specifications are laid down by the WHO, USA and EU pharmacopeias for building oxygen plants for medical applications. We follow the specifications for making the plant machinery. The specifications include that the plants should be able to generate oxygen with purity greater than 99%, which is considered ideal for medical grade uses. The plants are offered in the capacities ranging from 20m3/hr to 5000m3/hr.

Manufacturing of medical O2 plants also include specifications for impurities. It is imperative for medical grade O2 not to have carbon dioxide more than 300ppm v/v. Water content in the medical hospital o2 must never exceed 67ppm v/v. Presence of carbon monoxide must never be greater than 5ppm v/v. As per the mandate of the WHO, oxygen is considered as a drug so it is important that the fabrication of medical oxygen generators is completed only with the best quality materials, components and technologies.

Get Technical Catelouge
For Setup Medical Oxygen Plants

Important features of high purity oxygen generators
  • Latest low pressure technology
  • Durability
  • Easy to use
  • Long life cycle
  • Highly pure output
  • No gas loss
  • Skid mounted
  • Smooth installation
high purity oxygen generators
Setup Medical Oxygen Plants

Our high purity oxygen generators are made with only ASME certified materials. Components used in the fabrication are bought only from the reputed OEMs. For example, we use air compressors only from the Atlas Copco for reliable and durable performance. We use cryogenic distillation technology in our manufacturing for generating purity up to 99.7%. There are other technologies like pressure swing adsorption (PSA) but they are able to produce oxygen with purity up to 95%, which further declines after PSA plant is used for a year.

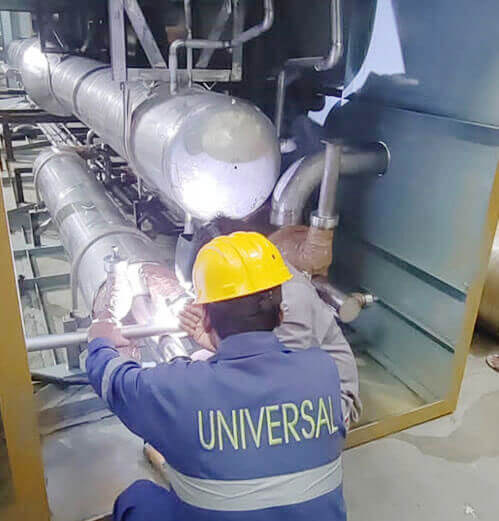

Our company takes the full responsibility for erection, installation, commissioning and starting-up of medical oxygen plants at the client’s site. Installation is hassle-free which is completed quickly by our engineers and technicians. Operation of the plant is demonstrated and training is also provided to the staff. The plant is fully automated so it requires only operator to run it.

UOG SERIES PLANT SPECIFICATIONS

Production UOG- 6 UOG-8 UOG-12 UOG-15 UOG-20 UOG-25 UOG-30 UOG-40

Oxygen (Nm3/hr)

6

8

12

15

20

25

30

40

Oxygen purity (%)

98%

98%

98%

98%

98%

98%

98%

98%

Cylinders per day

30

40

55

70

95

120

140

190
